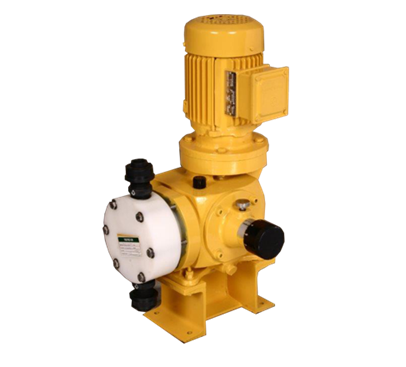

Dosing pump series - GB
Flow rate up to: 1175 l/h
Pressure up to: 10 kg/cm2g
High-efficiency, PTFE diaphragm
Mechanically actuated diaphragm
Stroke adjustment by variable eccentric minimizing pulsation and shock
Simplex version
Maximum temperature of pumped liquid: 50 °C
Adjustment of flow rate while running: from 0 to 100%
Accuracy: ± 2% of rated flow from 10% to 100% stroke
Suction lift: up to 2.5 m water
Turn down ratio 10:1
Lubrication by oil bath
Glass / Teflon Balls shall be offered based on the process fluid.
MAXROYAL / MAXROY SERIES
MAXROY series is a rugged, industrial grade of metering pumps designed for applications up to 290 gph (1,100 l/h) at pressures up to 406 psi (28 bar). Its cast iron housing with chemical resistant coating enables the pump to be used in the harshest environments.
more detail..

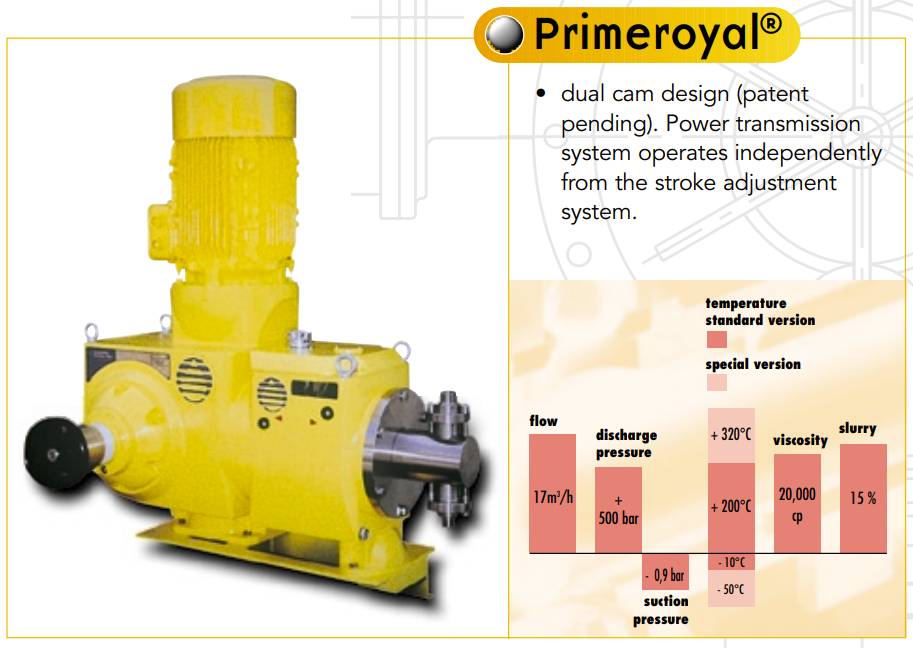

PRIMEROYAL / PRIMEROY SERIES
PRIMEROYAL® metering pumps are versatile, reliable pumps that consistently and accurately inject chemicals. The pumps’ field-proven design enables precise control of the pump delivery rate with a +/-1% steady state accuracy, over a range from 10 to 100% of the nominal flow rate. They feature a compact, variable eccentric drive that changes the stroke length by repositioning the center of the shaft in the eccentric.
more detail..
SERIES 300
Chlorine, Sulfur Dioxide
From 0.6 pounds/day (12 g/hr) up to 500 pounds/day (10 kg/hr)
Ammonia
Up to 250 pounds/day (5 kg/hr)
Available with actuator mounting ton ironworks - compatible with all popular brands of emergency shutoff actuators (see photo link on left).
Available with an integral alarm switch for 'out of gas' indication.
SERIES 500
Chlorine, Sulfur Dioxide
From 1.5 pounds/day (30 g/hr) up to 100 pounds/day (2000 gr/hr)
Ammonia
Up to 50 pounds/day (1000 gr/hr)
Available with actuator mounting ton ironworks - compatible with all popular brands of emergency shutoff actuators (see photo link on left).
SERIES 800
Chlorine, Sulfur Dioxide
From 4 pounds/day (75 g/hr) up to 250 pounds/day (5000 gr/hr)
SERIES 900
Chlorine, Sulfur Dioxide
From 4 pounds/day (75 g/hr) up to 2000 pounds/day (40 kg/hr)
Ammonia
Up to 1000 pounds/day (20 kg/hr)
Vacuum regulator has an integral switchover - can be used in pairs for uninterrupted feed. Available with actuator mounting ton ironworks - compatible with all popular brands of emergency shutoff actuators (see photo link on left).
SERIES 3000
Chlorine, Sulfur Dioxide
Up to 12,000 PPD (225 Kg/h)
Ammonia
Up to 1,000 PPD (20 Kg/h)
GA-171 Gas Alarm
Up to two sensors in any combination
Back lit LCD display-2 line, 20 characters per line.
Simple keypad operation.
User friendly calibration and operation.
Chlorine gas detector, H2S gas detector, Ammonia gas detector, Sulfur Dioxide gas detector, and Hydrogen gas detector.
Two programmable alarm relays.
Latching/non-latching relay option.
Danger/Warning LED's built-in.
4-20 mA output standard.
MODBUS (RS-485) communication
Profibus communication can optionally be supported
NEMA4X (IP66) rated controller
100-250 VAC (50-60 Hz)
1 Amp, 24 Watts max.
GA-180 Gas Alarm
H2S Gas Detector
Chlorine Gas Detector (Cl2)
Ammonia Gas Detector (NH3)
Up to 16 sensors in any combination
Scanning display of all sensor readings
Up to 35 relays - user adjustable, latching & non-latching, failsafe & non-failsafe
Two common alarm relays
Integral 95 dB horn
Isolated 4-20mA outputs
MODBUS communication (RS485)
Profibus communication can optionally be supported
Optional internal data logger
Optional battery backup
Optional temperature monitoring
Modular circuitry
Password protected setup
NEMA4X (IP66) rated controller
100-250 VAC (50-60 Hz)
1 Amp, 24 Watts max.
OV-110 Omni-Valve
Automatic feed of Chlorine (Cl2), Sulfur Dioxide (SO2), Ammonia (NH3) and Carbon Dioxide (CO2)
Linear drive design eliminates rotary motion - means minimal wear.
Max Capacity: 3000 PPD (60 kg/h)
Back lit liquid crystal display
Control Modes: Manual, Remote, Flow Pacing, Proportional, Residual, ORP,Compound Loop (PID), Step-Feed and Dual Input Feed Forward.
Two relay contact alarm outputs
Two (2) standard 4-20 mA outputs.
Ten point linearization process for accurate control.
Includes delays, filters and threshold adjustment.
Available as a special order item for pressure feed applications (20 PSIG or less).
*Modbus Communication (RS-485)
Profibus communication can optionally be supported
NEMA4X (IP66) rated controller
100-250 VAC (50-60 Hz)
600mA max. at 12VDC = 7.2 Watts
OV-1000 Omni-Valve
Automatic feed control of Chlorine (Cl2), Sulfur Dioxide (SO2), Ammonia (NH3) & Carbon Dioxide (CO2)
Elongated linear drive design for increased accuracy - Eliminates rotary motion for minimal wear
Maximum Gas Capacity:
10,000 PPD (200 kg/h) Cl2 & SO2
5,000 PPD (100 Kg/h) NH3
8,000 PPD (160 Kg/h) CO2
Back lit liquid crystal display
Control Modes: Manual, Remote, Flow Pacing, Proportional, Residual, ORP, Compound Loop (PID), Step-Feed, Dual Input Feed Forward and Dual Set-Point
Modbus Communication (RS-485)
Profibus communication can optionally be supported
Two relay contact alarm outputs
Two standard 4-20 mA outputs
Ten point linearization process for accurate and repeatable control
Available as a special order item for pressure feed applications (20 PSI maximum)
NEMA4X (IP66) rated controller
100-250 VAC (50-60 Hz)
600mA max. at 12VDC = 7.2 Watts
